When concrete slabs sink, settle, or become uneven, many property owners assume complete replacement is their only option. However, concrete leveling offers a cost-effective alternative that can restore your surfaces to their original position and functionality.
Two primary methods dominate the concrete leveling industry: mudjacking and polyurethane foam injection. Each approach has distinct advantages, limitations, and ideal applications.
This article examines both methods to help you determine which solution best fits your specific situation.
Understanding Why Concrete Settles
Before exploring leveling methods, it’s important to understand why concrete becomes uneven. Most settling occurs due to soil movement beneath the slab.
Poor soil compaction during initial construction, water washout, freeze-thaw cycles, and natural soil settling all contribute to void formation under concrete surfaces.
When voids develop, concrete loses support and gradually sinks into these empty spaces. The key to effective concrete leveling lies in filling these voids while simultaneously lifting the slab back to its proper position.
Method 1: Mudjacking (Slabjacking)

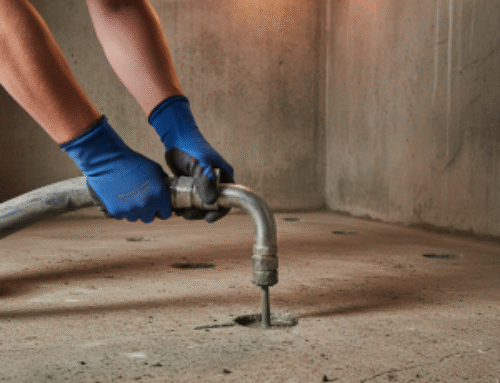

Mudjacking, also known as slabjacking, has been the traditional concrete leveling method for decades. The process involves drilling holes through the concrete slab and pumping a mixture of cement, sand, water, and sometimes additional materials beneath the surface.
How Mudjacking Works
The procedure begins with drilling holes approximately 1-2 inches in diameter through the sunken concrete. These holes are strategically placed to ensure even lifting across the affected area. A specialized pump then forces the cement-based slurry through these holes and into the voids beneath the slab.
As the mixture fills empty spaces, it creates hydraulic pressure that gradually lifts the concrete back to its desired level. The holes are then patched with concrete, and the surface is ready for use once the mixture cures.
When Mudjacking Works Best
Mudjacking excels in situations involving large, heavy concrete surfaces like driveways, patios, sidewalks, and garage floors. The method works particularly well when dealing with substantial settling over broad areas, as the cement-based mixture provides excellent load-bearing capacity for heavy-duty applications.
This approach is also ideal when budget constraints are a primary concern, as mudjacking typically costs significantly less than complete concrete replacement while delivering reliable results.
Advantages of Mudjacking
The primary benefit of mudjacking is cost-effectiveness. In most cases, mudjacking costs 50-80% less than concrete replacement while achieving similar functional results. The method also provides quick solutions—most residential projects can be completed in a single day.
Mudjacking uses readily available materials and doesn’t require highly specialized equipment, making it accessible for most concrete contractors. The cement-based mixture closely matches the original concrete composition, ensuring compatibility and long-term performance.
Limitations of Mudjacking
Mudjacking isn’t suitable for all situations. Severely cracked or structurally compromised concrete may not be good candidates, as the drilling and pumping process could worsen existing damage.
The method also requires larger access holes compared to newer alternatives, which some property owners find objectionable.
The cement-based mixture used in mudjacking can be susceptible to the same soil conditions that caused the original settling. Over time, water infiltration or continued soil movement may require additional maintenance or reapplication.
Method 2: Polyurethane Foam Injection
Polyurethane foam injection represents the newer generation of concrete leveling technology. This method uses expanding polyurethane foam to fill voids and lift concrete slabs back into position.
How Polyurethane Foam Injection Works
The process begins with drilling much smaller holes than mudjacking requires—typically only 5/8 inch in diameter. A two-part polyurethane mixture is injected through these holes into the voids beneath the concrete.
Once injected, the polyurethane components react and expand, filling empty spaces and creating lifting pressure. The foam hardens quickly, usually within 15-30 minutes, providing immediate support and stability.
When Polyurethane Foam Works Best
Polyurethane foam injection excels in situations requiring precision and minimal disruption. It’s particularly effective for indoor applications, finished surfaces where appearance matters, or projects with limited access space.
The method works well for smaller repair areas or situations where quick turnaround is essential. Because the access holes are much smaller than those required for mudjacking, polyurethane injection is often preferred for decorative concrete or highly visible areas.
Advantages of Polyurethane Foam Injection
The most significant advantage is speed—polyurethane foam cures rapidly, allowing surfaces to be used within hours rather than days. The smaller injection holes are less noticeable and easier to patch cleanly.
Polyurethane foam is lightweight yet strong, adding minimal additional weight to the structure while providing excellent lifting capacity. The material is also resistant to water and chemical degradation, potentially offering longer-lasting results in challenging soil conditions.
The precision possible with polyurethane injection makes it ideal for delicate applications where exact leveling is crucial.
Limitations of Polyurethane Foam Injection
Cost is the primary disadvantage—polyurethane foam injection typically costs 2-3 times more than mudjacking. The method requires specialized equipment and training, limiting the number of contractors qualified to perform the work.
While polyurethane foam provides excellent performance, some contractors and property owners prefer traditional materials with longer track records. The foam’s long-term performance in various soil conditions, while generally positive, doesn’t have the decades of proven results that mudjacking offers.
Choosing the Right Method
Several factors should influence your choice between mudjacking and polyurethane foam injection:
- Project Size and Scope: Large areas with substantial settling often benefit from mudjacking’s cost-effectiveness, while smaller, precision repairs may justify polyurethane’s higher cost.
- Timeline Requirements: If you need immediate use of the surface, polyurethane’s rapid curing provides a clear advantage. For projects where a day or two of curing time isn’t problematic, mudjacking works well.
- Budget Considerations: Mudjacking offers the most economical solution for most applications, while polyurethane provides premium performance at a higher price point.
- Aesthetic Concerns: Polyurethane’s smaller access holes and cleaner finish make it preferable for highly visible or decorative surfaces.
- Soil Conditions: Both methods can work in various soil types, but polyurethane may offer better long-term performance in areas with ongoing water infiltration or unstable soil conditions.
Frequently Asked Questions
Get Your Concrete Leveling Done Right
Whether you’re dealing with a sunken driveway or uneven indoor floors, choosing the right concrete leveling method can restore your surfaces and prevent further damage. Acting quickly ensures safety, saves money, and enhances your property’s value.
